The B&R Automation Industrial PC systems for various machinery
18
Oct
Oct
The B&R Automation Industrial PC systems
The B&R Industrial Automation offers a comprehensive portfolio of Industrial PC systems designed for maximum robustness, reliability, and long-term availability in various types of machinery and industrial environments.
The main categories of B&R Industrial PCs are:
- Box PCs (Automation PC): These are compact, fanless industrial computers without an integrated display, designed to be mounted inside a cabinet or attached to a monitor (Automation Panel). Examples include the Automation PC 3100 and Automation PC 910. They offer scalable performance, from Intel Atom to Core i7 processors, and are built to handle demanding automation tasks.

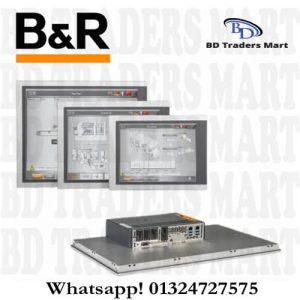

- Panel PCs: These devices combine the powerful industrial computer and the display Human Machine Interface (HMI) into a single, compact unit. They are available in various display sizes, resolutions and touch technologies (single-touch and multi-touch/projected capacitive). Examples include the Panel PC 3100, Panel PC 2200, and Panel PC 2100
- Automation PC mobile: These are highly rugged PCs designed specifically for mobile machinery and harsh outdoor environments, resistant to shock, vibration, salt, UV light, and oil, with an extended operating temperature range.
Technical Features of B&R Industrial PCs
- Scalable Performance: They utilize a range of modern Intel processors (Celeron, Atom, Core i-series) to allow customization of computing power based on the application’s complexity.
- Robustness: They are engineered for harsh industrial conditions, often featuring fanless designs (no rotating parts), high-quality components, and resistance to environmental factors.
- Modularity and Flexibility: Many models offer modular interfaces and slots for expansion with features like fieldbus connections (POWERLINK, CAN, etc.), UPS solutions, or additional storage (CFast cards, SSDs).
- Integrated Software Ecosystem: They are seamlessly integrated with B&R’s Automation Studio software development environment and can run standard operating systems
All kind of Industrlal PC and Panel PC systems of B&R Automation
- Automation PC 910
- Automation PC 2100
- Automation PC 2200
- Automation PC 3100
- Automation PC 3200
- Automation PC 4100
- Automation PC 3100 mobile
- Panel PC 3200 multi-touch
- Panel PC 3200 single-touch
- Panel PC 3100 single-touch
- Panel PC 3100 multi-touch
- Panel PC 2200 multi-touch
- Panel PC 2200 single-touch
- Panel PC 2100 multi-touch
- Panel PC 2100 single-touch
- Panel PC 1200
- Panel PC 900 multi-touch
- Panel PC 900 single-touch
Panel PC 2100 CPU Systems
| 5PPC2100.BY01-000 | PPC2100 system unit Intel Atom E3815 1.46 GHz – Single core – 1 GB SDRAM – For Automation Panel 923/933/1000 |
| 5PPC2100.BY22-000 | PPC2100 system unit – Intel Atom E3826 1.46 GHz – Dual core – 2 GB SDRAM – For Automation Panel 923/933/1000 |
| 5PPC2100.BY34-000 | PPC2100 system unit – Intel Atom E3827 1.75 GHz – Dual core – 4 GB SDRAM – For Automation Panel 923/933/1000 |
| 5PPC2100.BY44-000 | PPC2100 system unit – Intel Atom E3845 1.91 GHz – Quad core – 4 GB SDRAM – For Automation Panel 923/933/1000 |
| 5PPC2100.BY48-000 | PPC2100 system unit – Intel Atom E3845 1.91 GHz – Quad core – 8 GB SDRAM – For Automation Panel 923/933/1000 |
CFast cards Memory Card Systems for Operating OS for B&R Automation Systems
- 5CFAST.2048-00 CFast 2 GB SLC
- 5CFAST.4096-00 CFast 4 GB SLC
- 5CFAST.8192-00 CFast 8 GB SLC
- 5CFAST.016G-00 CFast 16 GB SLC
- 5CFAST.032G-00 CFast 32 GB SLC
- 5CFAST.032G-10 CFast 32 GB MLC
- 5CFAST.064G-10 CFast 64 GB MLC
- 5CFAST.128G-10 CFast 128 GB MLC
- 5CFAST.256G-10 CFast 256 GB MLC
The Panel PC3100 CPU system unit descriptions:
| 5PPC3100.KBU0-000 | PPC3100 system unit – Intel Celeron 3965U 2.2 GHz – Dual core – For Automation Panel 923/933/1000 |
| 5PPC3100.KBU1-000 | PPC3100 system unit – Intel Core i3 7100U 2.4 GHz – Dual core – For Automation Panel 923/933/1000 |
| 5PPC3100.KBU2-000 | PPC3100 system unit – Intel Core i5 7300U 2.6 GHz – Dual core – For Automation Panel 923/933/1000 |
| 5PPC3100.KBU3-000 | PPC3100 system unit – Intel Core i7 7600U 2.8 GHz – Dual core – For Automation Panel 923/933/1000 |
Interface Option Card for APC2100/PPC2100/APC2200/PPC2200
| 5ACCIF01.FPCC-000 | Interface card – 2x CAN interfaces – 1x X2X Link interface – 1x POWERLINK interface – 512 kB nvSRAM |
| 5ACCIF01.FPCS-000 | Interface card – 1x RS485 interface – 1x CAN interface – 1x POWERLINK interface – 32 kB FRAM |
| 5ACCIF01.FPLK-000 | Interface card – 1x POWERLINK interface – Integrated 2-port hub – 512 kB nvSRAM |
| 5ACCIF01.FPLS-000 | Interface card – 1x RS232 interface – 1x POWERLINK interface – 32 kB FRAM |
| 5ACCIF01.FPLS-001 | Interface card – 1x RS232 interface – 1x POWERLINK interface – 512 kB nvSRM |
| 5ACCIF01.FPSC-000 | Interface card – 1x RS232 interface – 1x CAN interface – 1x POWERLINK interface – 32 kB FRAM |
| 5ACCIF01.FPSC-001 | Interface card – 1x RS232 interface – 1x CAN interface – 1x X2X Link Interface – 1x POWERLINK interface – 512kB |
| 5ACCIF01.FSS0-000 | Interface card – 2x RS422/RS485 interface |
| 5ACCIF01.ICAN-000 | Interface card – 1x CAN interface systems |
| 5ACCIF03.CETH-000 | Interface card – 2x ETH 10/100/1000 interface |
Summary of B&R Automation
The B&R Industrial Automation is a leading Austrian company specializing in machine and factory automation, process control technology, and integrated solutions. It has been a member of the ABB Group since 2017. Providing complete automation solutions that combine state-of-the-art technology with advanced engineering for virtually every industry, including packaging, mobile machinery, and semiconductors.
Product Portfolio of B&R:

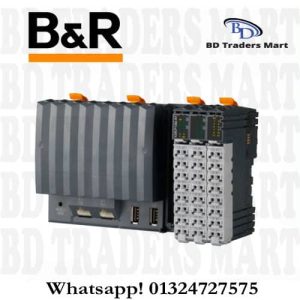

- Control Systems (PLCs/Industrial PCs): Highly scalable controllers (X20 system, Panel PCs, Box PCs) for a wide range of applications from small controllers to complex CNC and robotics.
- Motion Control: Servo drives, motors, gearboxes, and advanced linear conveyance systems like ACOPOStrak, SuperTrak, and ACOPOS 6D (levitating movers).
- HMI (Human-Machine Interface): Industrial PCs and panel-based controls.
- I/O Systems and Integrated Safety Technology: Modular I/O and certified safety solutions, including the use of openSAFETY.
- Machine Vision: Fully integrated vision systems (cameras, lighting, software) for inspection, sorting, and synchronization with motion control.
Key Technology and Software:
Automation Studio: A single, powerful software development environment for configuring, programming, and optimizing all B&R products, supporting standard programming languages, C++, and technology libraries like mapp Technology. Solutions utilizing intelligent track systems, robotics (like Codian pick & place robots), machine vision, and digital twins to increase production flexibility and efficiency.
